LM-CANopen® con DISPLAY

  • NEW CANopen® CONTROL UNIT with DISPLAY

    The new universal LM-CANopen control with display unit can be used with all sensors manufactured by MICELECT.

    LM-CANopen DISPLAY load weighing controller for elevators and lifts by MICELECT

    This unit uses CANopen® communications protocol and its calibration and configuration is very easy.
    8 to 16 inputs models available.

    We make different versions with CAN propietary protocol too.

    FEATURES:

    • MODELS:
      • DIN-rail.
      • In a IP 65-rated plastic box.
      • 8 inputs.
      • 16 inputs.
      • CAN propietary protocol.
    • STANDARD FEATURES:
      • CANopen® communications according to Cia 417.
      • Compatible with all load weighing sensors manufactured by MICELECT.
      • Up to 16 individual sensor measures.
      • High sampling speed.
      • Non-connection sensor detection (EMCY codes).
      • CAN-bus connection: DS 303-1 (Open Style Connector or 9-pin D-sub connector).
      • LEDs indicate the status of the node according to DS 303-3.
      • CANopen alarms:
        • Zero-Load.
        • Normal-Load.
        • Full-Load.
        • Overload.
        • Slack rope.
        • Difference of rope.
      • LCD and buttons to view and set all CANopen and manufacturer parameters.
      • Update firmware button through CANBus connector (with PCAN adapter).
  • ELECTRICAL FEATURES:

    Power Supply Voltage 24Vdc
    Communications CANopen
    Open Style connectors DS 303-1
    LEDs indicating the status of the node DS 303-3
    2.5 kV rms signal and power isolated CAN transceiver.
    isoPower integrated isolated dc-to-dc converter.
    Complies with ISO 11898 standard High speed data rates of up to 1 Mbps.
    High common-mode transient immunity: >25 kV/μs.
    DIP switch 120Ω termination resistor.
    Update firmware button through CANBus connector (with PCAN adapter).

    MECHANICAL FEATURES:

    Weight 1Kg

    TEMPERATERE FEATURES:

    Operating temperature -10ºC / 50ºC

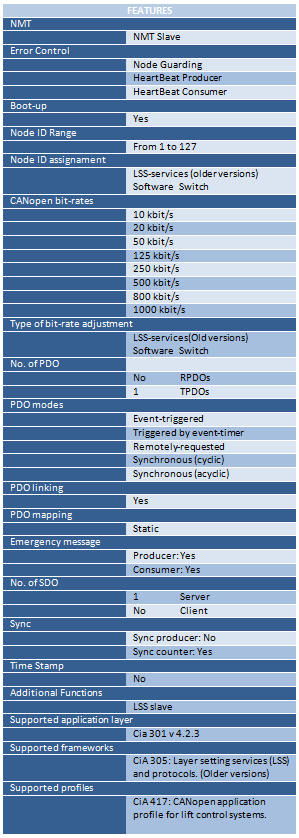

  • MICELECT's LM-CANopen with display main features

    MICELECT's LM-CANopen with display general dimensions

  • Files:
    Date 2017-02-08
    Language  English
    File Size 1.23 MB
