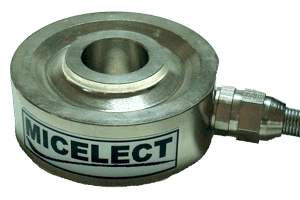

ELEVATOR HITCH PLATE SENSOR
The HPS individual wire rope sensor provides an easy and precise solution for controlling the load in traction lifts by measuring the individual tension on each wire rope.
When used with the MWR-4 or MWR-8 control unit, it becomes the perfect solution for installations where it is necessary to monitor the balance of the rope tensions, or where there is extremely limited headroom.

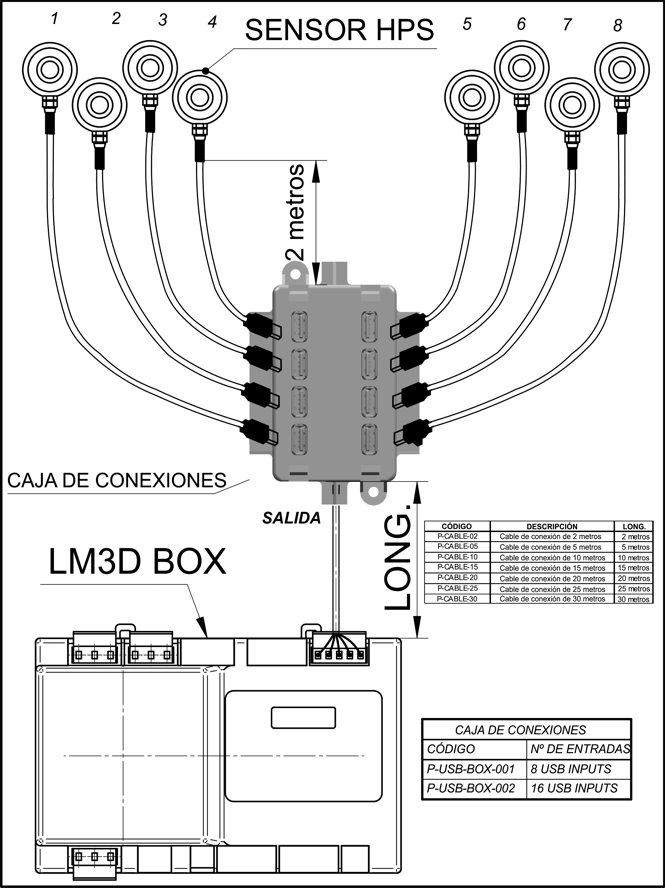

Another option with LM3D box control and USB-BOX the total weight sum of all the cables will be obtained.
This solution is recommended for any new installation, or installations in which a high level of accuracy and reliability is required.
- Unparalleled accuracy and reliability.
- No need for maintenance.
- Automatic calibration, meaning no need for test weights.
- Reduced dimensions.
- For any type of wire ropes and flat belts.
- Quick and easy installation (5 Mins.).
Operating capacity (RC) 500Kg / 1000Kg / 5000Kg / Sensor Safe load 150% CT Overload 200% CT Deflection at overload <0.5 mm Hysteresis <0.1% CT Total error <0.5% CT Weight 0.2 Kg/Sensor
Temp. effect on output <+/- 0.01% / ºC Temp. effect on Zero <+/- 0.02% / CT Operating temperature -10ºC / 50ºC
