HPS - Load weighing sensor

  • ELEVATOR HITCH PLATE SENSOR

    The HPS individual wire rope sensor provides an easy and precise solution for controlling the load in traction lifts by measuring the individual tension on each wire rope.

    When used with the MWR-4 or MWR-8 control unit, it becomes the perfect solution for installations where it is necessary to monitor the balance of the rope tensions, or where there is extremely limited headroom.

    Another option with LM3D box control and USB-BOX the total weight sum of all the cables will be obtained.

    This solution is recommended for any new installation, or installations in which a high level of accuracy and reliability is required.

    HPS load weighing sensor for elevator hitch plate by MICELECT LM3D load weighing controller by MICELECT

    MWR-4 load weighing controller by MICELECT MWR-8 load weighing controller by MICELECT

    FEATURES:

    • Unparalleled accuracy and reliability.
    • No need for maintenance.
    • Automatic calibration, meaning no need for test weights.
    • Reduced dimensions.
    • For any type of wire ropes and flat belts.
    • Quick and easy installation (5 Mins.).
  • MECHANICAL FEATURES:

    Operating capacity (RC) 500Kg / 1000Kg / 5000Kg / Sensor
    Safe load 150% CT
    Overload 200% CT
    Deflection at overload <0.5 mm
    Hysteresis <0.1% CT
    Total error <0.5% CT
    Weight 0.2 Kg/Sensor

    TEMPERATURE FEATURES:

    Temp. effect on output <+/- 0.01% / ºC
    Temp. effect on Zero <+/- 0.02% / CT
    Operating temperature -10ºC / 50ºC
  • HPS load weighing sensor for elevator hitch plate by MICELECT dimensions

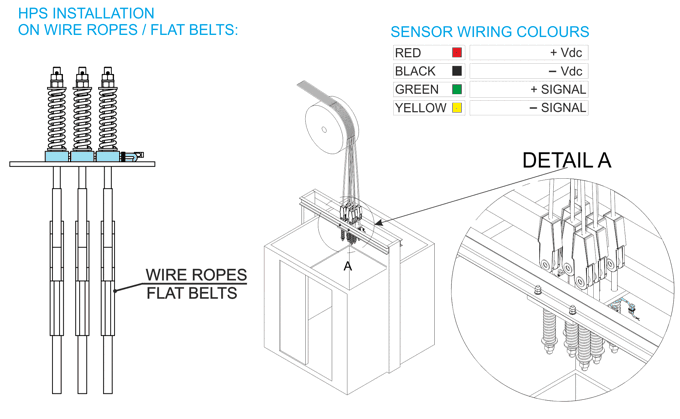

    HPS load weighing sensor for elevator hitch plate by MICELECT installation

    HPS load weighing sensor for elevator hitch plate by MICELECT LM3D connection

  • DOWNLOADS:

    Files:
    HPS-2016HOT
    HPS Datasheet
    Date 2016-11-18
    Language  Multilanguage
    File Size 2.26 MB
    HPS user manual-2016HOT
    HPS User manual
    Date 2016-11-18
    Language  English
    File Size 749.6 KB
