RTS-RF / WRF - Rope tensioning system
-
ROPE TENSIONING SYSTEM: RTS-RF + WRF
The RTS device is a precision tool for accurately balancing the tension in a lift’s wire ropes.

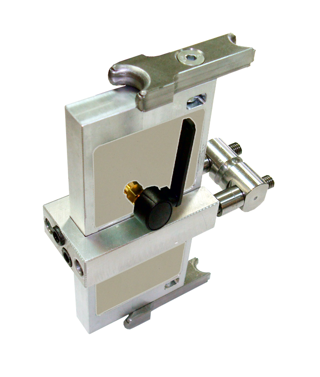

Its high level of precision and the fact that the sensors have no wires make it an even more versatile and essential tool than the standard RTS device for installers and maintenance workers.
- FUNCTIONS:
- Simultaneous adjustment of tension balance in wire ropes, counterweight and cabin.
- STANDARD FEATURES:

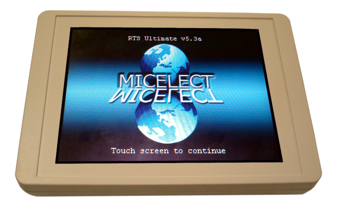

- Touch screen.
- 6 languages.
- Complete set of accessories included as standard.
- Readings from up to 24 sensors simultaneously.
- For wire rope diameters: 04-16mm.
- FUNCTIONS:
-
MECHANICAL FEATURES:
Operating capacity (RC) 1000 Kg/sensor Safe load 150% RC Overload 200% RC Deflection at overload <0.5 mm Hysteresis <0.1% RC Total error <0.5% RC Weight 15 Kg ELECTRICAL FEATURES:
Power supply voltage Rechargeable batteries TEMPERATURE FEATURES:
Operating temperature -10ºC / 50ºC -
-
