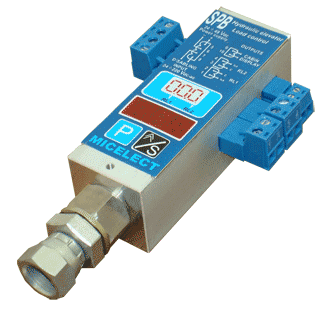

SPB - Hydraulic load sensor
-
The SPB electronic pressure sensor provides an easy and precise solution for controlling the load in hydraulic lifts. Its quick and easy installation and automatic calibration (5 mins.) make it the perfect solution for both new installations and modernisations.
FEATURES:
- Automatic calibration, meaning no need for test weights.

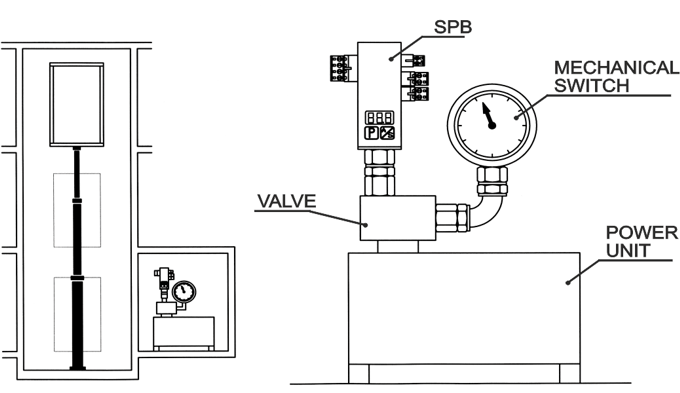

- Quick and easy installation (5 mins.).
- 2 programmable alarms: Full load and Overload.
- Integrated display to show weight values in bars.
- EEPROM data memory.
-
ELECTRICAL FEATURES:
Power supply voltage 24-48 Vdc Disabling input 24-230 Vac/dc Relay contacts 250Vac 3A MECHANICAL FEATURES:
Operating capacity (RC) 100 bar Safe load 150% RC Overload 200% RC Deflection at overload <0.5 mm Hysteresis <0.1% RC Total error <3% RC Weight 0.2 Kg TEMPERATURE FEATURES:
Operating temperature -10ºC / 80ºC -
-
