ILC3 - Load weighing sensor

  • INTELLIGENT ELEVATOR WIRE ROPE SENSOR

    The ILC3 intelligent wire rope sensor provides an easy and precise solution for controlling the load in traction lifts.

    Its quick and easy installation (only 5 mins.) and calibration through the diameter of the ropes make it the perfect solution for lift modernizations with considerably high load capacities.

    ILC3 load weighing sensor for elevator wire ropes by MICELECT

    FEATURES:

    • 3 programmable alarms: Presence, Full load & Overload.
    • Integrated display to show weight values up to 9,999 KG.
    • Automatic calibration using the wire rope diameter, meaning no need for test weights.
    • Universal rope clamps for all types of rope distribution.
    • EEPROM data memory.
    • Integrated software to correct weight increases due to compensating chain.
    • Quick and easy installation (5 mins.)
    • Suitable for 1:1-roped installations.
    • Connection options:
      • Connectors.
      • Cable.
  • OUTPUT OPTIONS:

    Analogue output: 0-20, 0-24 or 4-20(mA).

    Communications: RS485.

    ELECTRICAL FEATURES:

    Power supply voltage 24-48 Vdc
    Disabling input 24-230 Vac/dc
    Relay contacts 250Vac 3A

    MECHANICAL FEATURES:

    Operating capacity (RC) 6.000 Kg
    Safe load 150% RC
    Overload 200% RC
    Deflection at overload <0.5 mm
    Hysteresis <0.1% RC
    Total error <3% RC
    Weight 2 Kg

    TEMPERATURE FEATURES:

    Operating temperature -10ºC / 50ºC
  • ILC3 load weighing sensor for elevator wire ropes by MICELECT dimensions

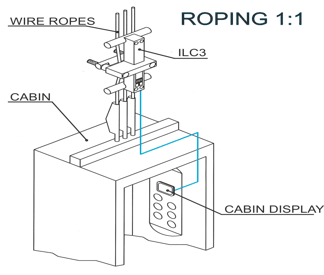

    ILC3 load weighing sensor for elevator wire ropes by MICELECT installation

  • DOWNLOADS:

    Files:
    ILC3-2016HOT
    ILC3 Datasheet
    Date 2016-11-18
    Language  Multilanguage
    File Size 558.77 KB
